Deploy an app. Get a working HTTPS reverse proxy entry. Automatically. No manual DSM configuration. No certificate assignment. No cleanup to remember.

You have a Synology NAS acting as your home lab gateway. Every time you deploy a new service to Kubernetes, you open DSM, navigate to Application Portal → Reverse Proxy, fill in the hostname, the backend IP, the port, and assign a certificate. When a LoadBalancer IP changes, you update it manually. When you remove an app, you remember (or forget) to clean up the rule.

Synology Proxy Operator eliminates all of that. It watches your Kubernetes cluster and keeps your Synology DSM reverse proxy configuration in sync — automatically. Deploy an app, get a reverse proxy entry. Delete it, the rule is gone. Change the backend IP, the rule is updated. All without touching DSM.

On top of that, the operator:

Assigns TLS certificates automatically — picks the best matching wildcard or SAN certificate from DSM, falls back to the default certificate
Enforces access control — apply a Synology ACL profile (e.g. "LAN Only") globally or per-rule to restrict which clients can reach a service
Supports additional hostnames — one app, multiple public FQDNs, each with its own DSM record and certificate
Cleans up reliably — a Kubernetes finalizer ensures DSM records are removed before the rule object is deleted, even if the operator restarts mid-deletion

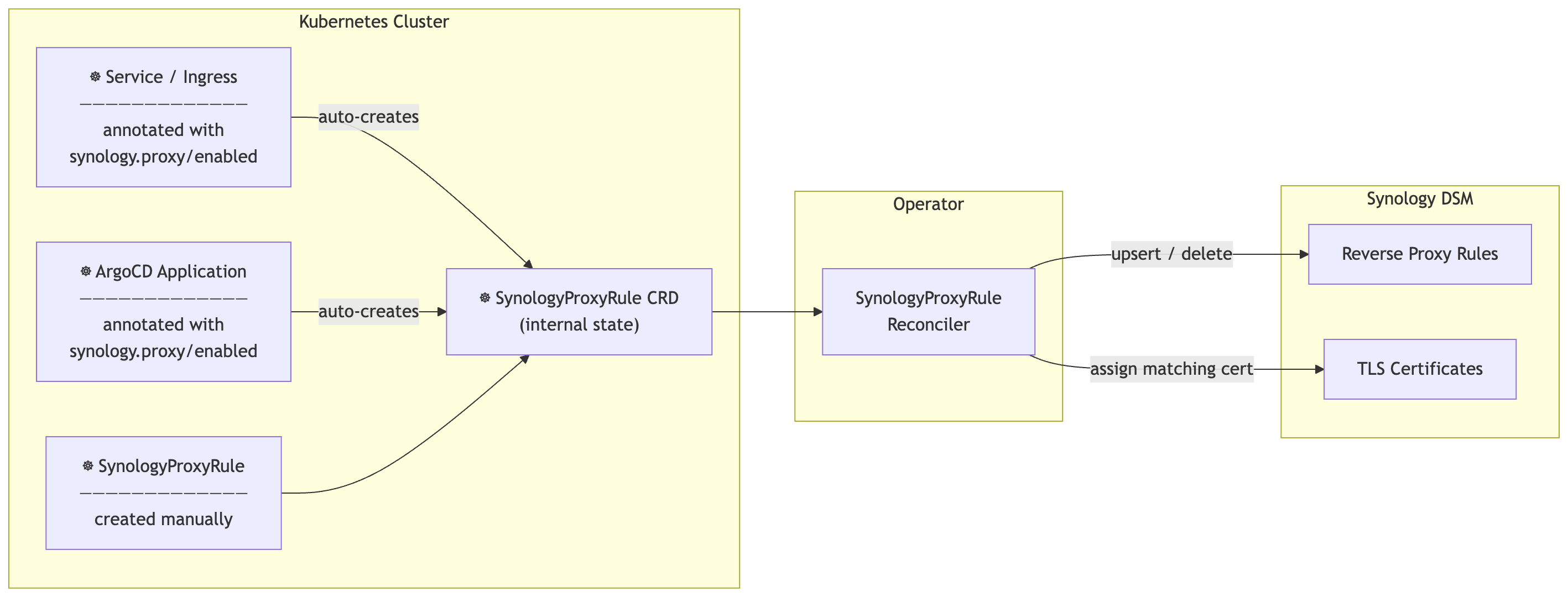

How it works

The operator runs three controllers:

Controller	Watches	Action
`ServiceIngressReconciler`	Services + Ingresses with `synology.proxy/enabled: "true"`	Creates / deletes `SynologyProxyRule` objects
`ArgoApplicationReconciler`	ArgoCD `Application` objects with `synology.proxy/enabled: "true"`	Creates / deletes `SynologyProxyRule` objects
`SynologyProxyRuleReconciler`	All `SynologyProxyRule` objects	Syncs to DSM — the only controller that calls the DSM API

The first two controllers are purely Kubernetes-side. All DSM interaction flows through the third.

Zero-touch reverse proxy management

With operator.defaultDomain configured, the full lifecycle is hands-free:

You deploy an app to Kubernetes
The operator detects the new Service or ArgoCD Application
A DSM reverse proxy rule is created for myapp.home.example.com → <backend IP:port>
The best matching TLS certificate is automatically assigned
If an ACL profile is configured, access restrictions are applied immediately
When you delete the app, the DSM rule is removed automatically

Optional — automatic DNS:

If you run the Synology DNS Server package, it can automatically create A records for hostnames the reverse proxy manages. Combined with forwarding your internal DNS queries to the NAS, even DNS is zero-touch.

If you already use some DNS server like e.g. Pi-Hole you can set the upstream DNS to your NAS IP. This will provide an end-to-end workflow of provisioning new services to become available.

Prerequisites

Requirement	Version
Synology DSM	≥ 7.0 (WebAPI access required)
Kubernetes	≥ 1.28
ArgoCD	≥ 2.8 — optional, only for the ArgoCD watcher

Installation

Option A — Helm from GHCR (recommended for stable releases)

helm upgrade --install synology-proxy-operator \
  oci://ghcr.io/phoeluga/charts/synology-proxy-operator \
  --namespace synology-proxy-operator \
  --create-namespace \
  --set synology.url="https://192.168.1.x:5001" \
  --set synology.username="admin" \
  --set synology.password="secret" \
  --set synology.skipTLSVerify=true \
  --set operator.defaultDomain="home.example.com"

Using an existing Secret

If you manage credentials externally (SealedSecret, External Secrets Operator, etc.):

helm upgrade --install synology-proxy-operator \
  oci://ghcr.io/phoeluga/charts/synology-proxy-operator \
  --namespace synology-proxy-operator \
  --create-namespace \
  --set synology.existingSecret=synology-credentials \
  --set operator.defaultDomain="home.example.com"

The Secret must have keys: SYNOLOGY_URL, SYNOLOGY_USER, SYNOLOGY_PASSWORD, SYNOLOGY_SKIP_TLS_VERIFY.

Option B — Helm from Git (tracks `main` branch, includes latest unreleased changes)

Use this when you want the latest fixes and features before a release, or when you need the CRD and chart to stay in sync with the operator binary automatically.

helm upgrade --install synology-proxy-operator \
  ./helm/synology-proxy-operator \
  --namespace synology-proxy-operator \
  --create-namespace \
  --set synology.existingSecret=synology-credentials \
  --set operator.defaultDomain="home.example.com" \
  --set image.tag=main \
  --set image.pullPolicy=Always

Or clone the repo and point Helm at the local chart directory.

Option C — GitOps with ArgoCD

The operator references credentials via synology.existingSecret. Create the Secret separately before ArgoCD syncs.

Step 1 — create the credentials Secret (once, outside ArgoCD):

kubectl create secret generic synology-credentials \
  --namespace synology-proxy-operator \
  --from-literal=SYNOLOGY_URL="https://192.168.1.x:5001" \
  --from-literal=SYNOLOGY_USER="admin" \
  --from-literal=SYNOLOGY_PASSWORD="secret" \
  --from-literal=SYNOLOGY_SKIP_TLS_VERIFY="false"

Step 2 — deploy with ArgoCD (stable GHCR release):

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: synology-proxy-operator
  namespace: argocd
spec:
  source:
    repoURL: ghcr.io/phoeluga/charts
    chart: synology-proxy-operator
    targetRevision: ">=0.0.0"
    helm:
      valuesObject:
        operator:
          defaultDomain: "home.example.com"
        synology:
          existingSecret: synology-credentials
  destination:
    server: https://kubernetes.default.svc
    namespace: synology-proxy-operator
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
      - ServerSideApply=true

Alternative — track main branch directly (chart + CRD + binary always in sync):

  source:
    repoURL: 'https://github.com/phoeluga/synology-proxy-operator.git'
    targetRevision: main
    path: helm/synology-proxy-operator
    helm:
      valuesObject:
        operator:
          defaultDomain: "home.example.com"
        synology:
          existingSecret: synology-credentials
        image:
          tag: main
          pullPolicy: Always

ServerSideApply=true is required for ArgoCD to upgrade CRDs on sync. Without it, CRD schema changes (e.g. new fields) are not applied on helm upgrade or ArgoCD sync.

For a fully GitOps credential workflow, encrypt the Secret with Sealed Secrets or manage it via External Secrets Operator and commit only the encrypted/reference form to your cluster repo.

Configuration

All settings are read from environment variables. Helm sets these automatically from values.yaml.

Variable	Description	Default
`SYNOLOGY_URL`	DSM base URL — e.g. `https://192.168.1.x:5001`	required
`SYNOLOGY_USER`	DSM username	required
`SYNOLOGY_PASSWORD`	DSM password	required
`SYNOLOGY_SKIP_TLS_VERIFY`	Skip TLS verification (self-signed certs)	`false`
`DEFAULT_DOMAIN`	Domain appended to auto-derived hostnames, e.g. `home.example.com`	`""`
`DEFAULT_ACL_PROFILE`	Synology ACL profile name applied to all rules that do not specify one	`""`
`RULE_NAMESPACE`	Namespace where auto-created `SynologyProxyRule` objects are placed. Empty = source app namespace	`""`
`ENABLE_ARGO_WATCHER`	Enable the ArgoCD Application watcher	`true`
`WATCH_NAMESPACE`	Namespace glob pattern (e.g. `app-*`) — Services, Ingresses and ArgoCD Applications in matching namespaces are auto-managed without needing the `synology.proxy/enabled` annotation. Empty = annotation-only mode.	`""`
`DISABLE_AUTO_DISCOVERY_IF_SPR_EXISTS`	When `true`, glob-based auto-discovery is suppressed for any namespace that already contains a manually-created `SynologyProxyRule`. Resources with `synology.proxy/enabled: "true"` are always managed regardless.	`false`

Usage

There are three ways to use the operator. Pick the one that fits your workflow.

Tip — skip annotations entirely: set WATCH_NAMESPACE to a glob pattern (e.g. app-*) and every Service, Ingress, and ArgoCD Application in matching namespaces is managed automatically — no annotation required.

Fine-grained control within a glob-managed namespace:

Set synology.proxy/enabled: "false" on a resource to exclude it from auto-management, even when its namespace matches the glob.

Set synology.proxy/auto-discovery: "false" on a Namespace to disable glob-based auto-management for the whole namespace. Individual resources in that namespace can still opt in with synology.proxy/enabled: "true".

Enable operator.disableAutoDiscoveryIfSPRExists: true to have auto-discovery automatically back off for any namespace where you place a manual SynologyProxyRule.

Mode 1 — Annotate a Service or Ingress

The simplest approach: add one annotation to any existing Service or Ingress. The operator handles the rest.

apiVersion: v1
kind: Service
metadata:
  name: myapp
  namespace: myapp
  annotations:
    synology.proxy/enabled: "true"
    # Optional — omit if DEFAULT_DOMAIN is set; hostname becomes "myapp.home.example.com"
    synology.proxy/source-host: "myapp.home.example.com"
spec:
  type: LoadBalancer
  ports:
    - port: 80

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: myapp
  namespace: myapp
  annotations:
    synology.proxy/enabled: "true"
    synology.proxy/destination-protocol: "https"
    synology.proxy/acl-profile: "LAN Only"

Removing the synology.proxy/enabled annotation — or deleting the object — removes the DSM record automatically.

Mode 2 — Annotate an ArgoCD Application

Annotate the Application object. The operator discovers the backend from the application's destination namespace automatically.

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: myapp
  namespace: argocd
  annotations:
    synology.proxy/enabled: "true"
    # Optional — defaults to "myapp.home.example.com" when DEFAULT_DOMAIN is set
    synology.proxy/source-host: "myapp.home.example.com"
    # Optional — pin to a specific Service; otherwise auto-scans the namespace
    synology.proxy/service-ref: "myapp/myapp-svc"
    # Optional — restrict access using a Synology ACL profile
    synology.proxy/acl-profile: "LAN Only"
spec:
  destination:
    namespace: myapp
    server: https://kubernetes.default.svc

Mode 3 — Manual SynologyProxyRule

Create a SynologyProxyRule directly for full control. Useful for services outside Kubernetes (VMs, NAS services, IoT devices).

Minimal — with DEFAULT_DOMAIN configured:

apiVersion: proxy.synology.io/v1alpha1
kind: SynologyProxyRule
metadata:
  name: myapp
  namespace: myapp
spec:
  serviceRef:
    name: myapp
    namespace: myapp

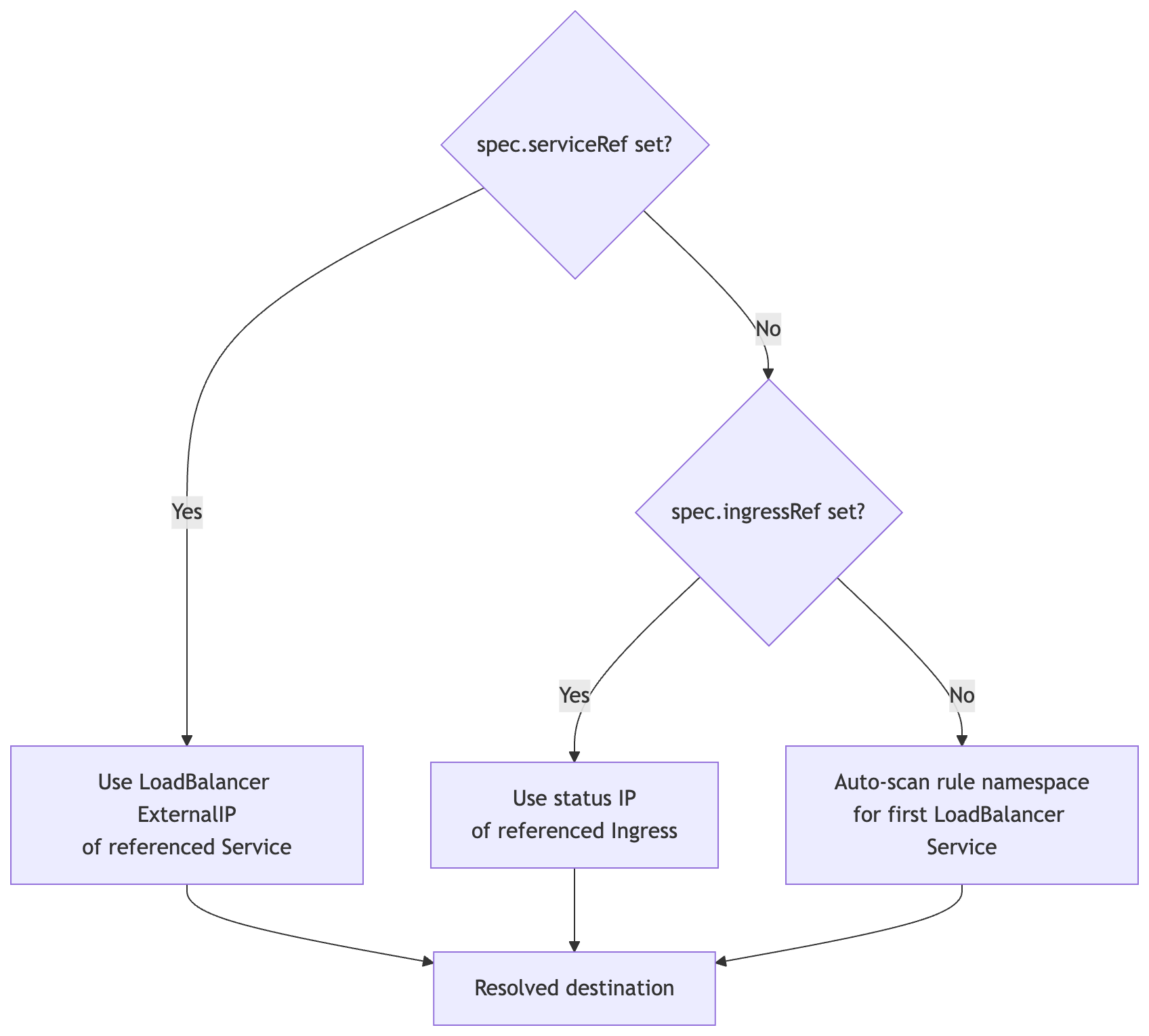

This creates a DSM record for myapp.home.example.com pointing at the LoadBalancer IP of the myapp Service.

Explicit — no auto-discovery:

apiVersion: proxy.synology.io/v1alpha1
kind: SynologyProxyRule
metadata:
  name: nas-photos
  namespace: synology-proxy-operator
spec:
  sourceHost: photos.home.example.com
  destinationHost: 192.168.1.100
  destinationPort: 8080
  destinationProtocol: http
  assignCertificate: true
  aclProfile: "LAN Only"

Multiple public hostnames for the same backend:

spec:
  sourceHost: myapp.home.example.com
  additionalSourceHosts:
    - myapp.example.org
  serviceRef:
    name: myapp
    namespace: myapp

Each hostname gets its own DSM record and certificate assignment.

Controlling auto-discovery per namespace

When WATCH_NAMESPACE is set to a glob pattern, every resource in matching namespaces is managed automatically. Two annotations give you fine-grained control when you need it.

Exclude one resource from a glob-managed namespace

Set synology.proxy/enabled: "false" on the resource. This overrides the glob — the operator will skip it and clean up any existing DSM rule:

apiVersion: v1
kind: Service
metadata:
  name: internal-debug
  namespace: app-myapp     # matches WATCH_NAMESPACE=app-*
  annotations:
    synology.proxy/enabled: "false"   # excluded — no DSM rule created

Disable auto-discovery for an entire namespace

Annotate the Namespace itself. This stops the glob from matching any resource inside it:

kubectl annotate namespace app-dns synology.proxy/auto-discovery=false

Resources in that namespace can still be managed individually with an explicit opt-in:

apiVersion: v1
kind: Service
metadata:
  name: dns-web
  namespace: app-dns
  annotations:
    synology.proxy/enabled: "true"   # opted in explicitly — rule is created
    synology.proxy/source-host: "dns.home.example.com"

Disable auto-discovery when a manual SPR exists in the namespace

Enable operator.disableAutoDiscoveryIfSPRExists: true (env: DISABLE_AUTO_DISCOVERY_IF_SPR_EXISTS=true) to let a manually-created SynologyProxyRule act as an implicit "hands-off" signal for its namespace.

When active, the operator detects any SPR in the namespace that it did not create itself (i.e. lacking the app.kubernetes.io/managed-by: synology-proxy-operator label). If one exists, glob-based auto-discovery is suppressed for that namespace and any previously auto-created rules are cleaned up:

# values.yaml
operator:
  watchNamespace: "app-*"
  disableAutoDiscoveryIfSPRExists: true

# Place the manual SPR in the APP's own namespace (not the centralised ruleNamespace).
# The operator checks the source namespace — so app-pihole's SPR suppresses only
# pihole auto-discovery, while app-homeassistant continues to be auto-managed.
apiVersion: proxy.synology.io/v1alpha1
kind: SynologyProxyRule
metadata:
  name: pihole-custom
  namespace: app-pihole   # must be in the app's namespace, not synology-proxy-operator
spec:
  sourceHost: pihole.home.example.com
  serviceRef:
    name: pihole
    namespace: app-pihole

Resources with synology.proxy/enabled: "true" are always managed, regardless of this option.

Decision order

For any resource the operator evaluates in this order:

synology.proxy/enabled: "false" on the resource → skip (always wins)
synology.proxy/enabled: "true" on the resource → manage (always wins)
Namespace matches WATCH_NAMESPACE glob and the namespace does not have synology.proxy/auto-discovery: "false" and (DISABLE_AUTO_DISCOVERY_IF_SPR_EXISTS is false or no manual SPR exists) → manage
None of the above → skip

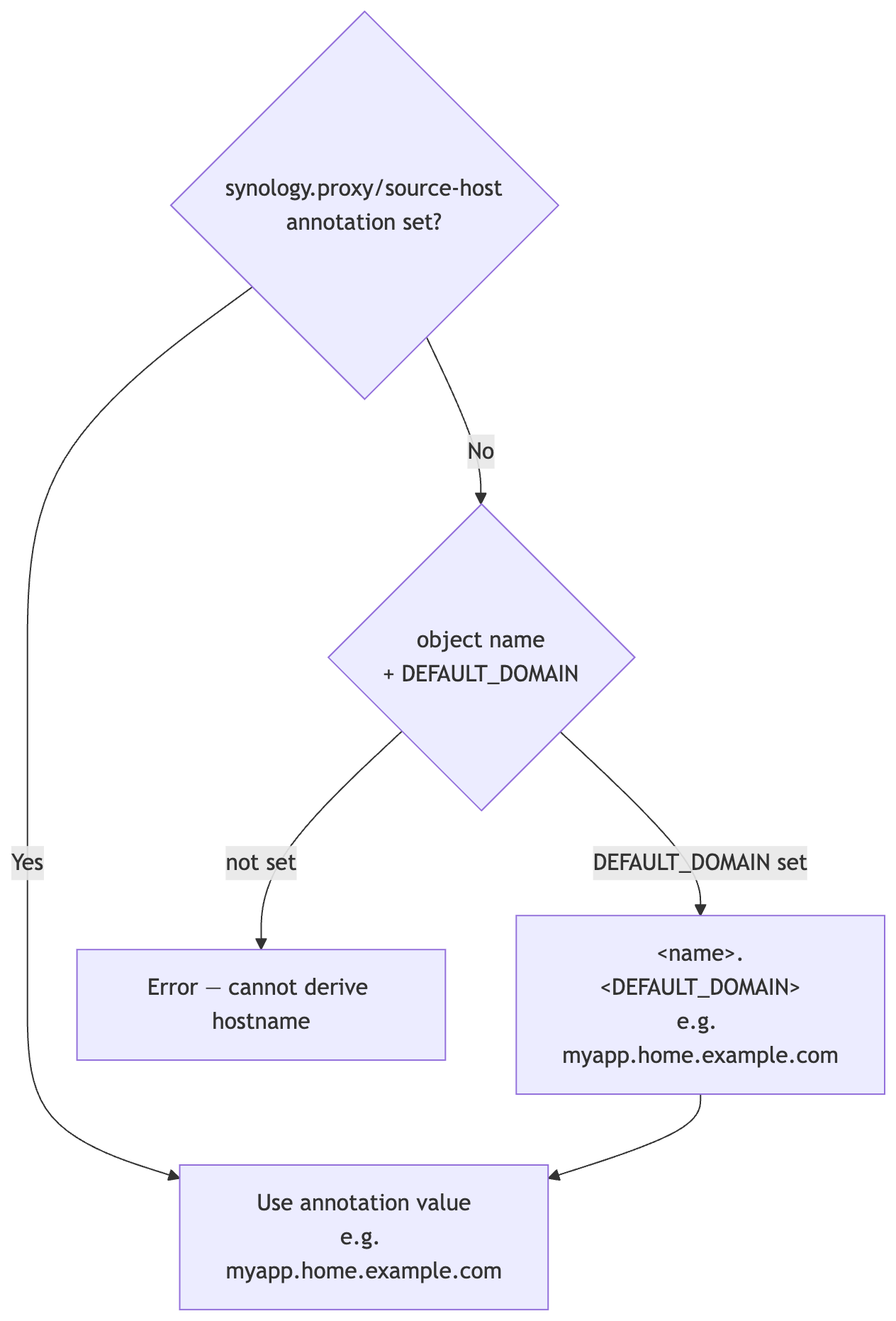

Hostname derivation

When spec.sourceHost is empty the operator derives it automatically:

Mode	Name used for derivation
Service / Ingress annotation	Service or Ingress name
ArgoCD Application	Application name
Manual `SynologyProxyRule`	Rule name, or `serviceRef`/`ingressRef` name

Certificate assignment

When spec.assignCertificate: true (the default), the operator assigns a TLS certificate to each DSM record after creation or update.

Selection order:

Find a DSM certificate whose CN or SAN matches the source hostname — wildcard patterns like *.home.example.com are supported
If no match is found, assign the DSM default certificate (is_default: true)

Certificate assignment is only called when the proxy record was just created or updated, not on every reconcile loop.

Access control (ACL profiles)

Synology DSM supports Access Control Profiles that restrict which source IPs or networks can reach a reverse proxy rule. The operator integrates this at two levels:

Global default — set operator.defaultACLProfile (Helm) or DEFAULT_ACL_PROFILE (env) to apply a profile to every rule that does not specify one
Per-rule — set synology.proxy/acl-profile annotation on a Service, Ingress, or ArgoCD Application, or set spec.aclProfile on a SynologyProxyRule directly

Profile names are resolved to DSM UUIDs automatically and cached for 5 minutes to reduce API calls.

Backend discovery

When destinationHost / destinationPort are not set:

Annotation reference

Annotation	Applies to	Description	Default
`synology.proxy/enabled`	Service, Ingress, ArgoCD App	`"true"` opts in; `"false"` explicitly opts out (overrides `WATCH_NAMESPACE` glob)	—
`synology.proxy/auto-discovery`	Namespace	`"false"` disables glob-based auto-management for all resources in this namespace; explicit `synology.proxy/enabled: "true"` on individual resources still works	`"true"`
`synology.proxy/source-host`	Service, Ingress, ArgoCD App	Public FQDN override	derived from name + domain
`synology.proxy/acl-profile`	Service, Ingress, ArgoCD App	Synology ACL profile name	`DEFAULT_ACL_PROFILE`
`synology.proxy/destination-protocol`	Service, Ingress, ArgoCD App	Backend protocol: `http` or `https`	`http`
`synology.proxy/assign-certificate`	Service, Ingress, ArgoCD App	Set `"false"` to skip TLS cert assignment	`"true"`
`synology.proxy/service-ref`	ArgoCD App	`<namespace>/<name>` — Service for backend discovery	auto-scan
`synology.proxy/ingress-ref`	ArgoCD App	`<namespace>/<name>` — Ingress for backend discovery	auto-scan
`synology.proxy/destination-host`	ArgoCD App	Backend IP/hostname override	auto-discovered
`synology.proxy/destination-port`	ArgoCD App	Backend port override	auto-discovered

SynologyProxyRule CRD reference

apiVersion: proxy.synology.io/v1alpha1
kind: SynologyProxyRule
metadata:
  name: myapp
  namespace: myapp
spec:
  # ── Frontend ───────────────────────────────────────────────────────────────
  sourceHost: myapp.home.example.com     # optional when DEFAULT_DOMAIN is set
  additionalSourceHosts:                 # each gets its own DSM record
    - myapp.example.org
  sourcePort: 443                        # default: 443

  # ── Backend ────────────────────────────────────────────────────────────────
  destinationHost: ""                    # auto-discovered when empty
  destinationPort: 0                     # auto-discovered when 0
  destinationProtocol: http              # http (default) | https

  # ── Backend auto-discovery ─────────────────────────────────────────────────
  serviceRef:
    name: myapp
    namespace: myapp                     # defaults to rule namespace when omitted
  ingressRef:
    name: myapp-ingress
    namespace: myapp

  # ── DSM settings ───────────────────────────────────────────────────────────
  aclProfile: "LAN Only"                 # DSM Access Control profile name
  assignCertificate: true                # auto-assign matching TLS certificate

  customHeaders:                         # defaults to WebSocket upgrade headers
    - name: Upgrade
      value: $http_upgrade
    - name: Connection
      value: $connection_upgrade

  timeouts:
    connect: 60                          # seconds
    read: 60
    send: 60

  # ── Internal (set automatically) ───────────────────────────────────────────
  description: ""                        # DSM record label — defaults to namespace/name
  managedByApp: ""                       # set by ArgoCD watcher, do not set manually

Status and observability

kubectl get spr -A

NAMESPACE   NAME                     SOURCE HOST                DESTINATION     SYNCED   RECORDS   AGE
myapp       myapp--myapp             myapp.home.example.com     192.168.1.55    true     1         12m
nas         nas-photos               photos.home.example.com    192.168.1.100   true     1         3d

kubectl describe spr myapp -n myapp

Status field	Description
`status.synced`	`true` when the last DSM sync succeeded
`status.managedRecords`	All DSM records owned by this rule (one per source hostname)
`status.managedRecords[].uuid`	DSM record UUID
`status.managedRecords[].sourceHost`	Frontend hostname for this record
`status.resolvedDestinationHost`	Backend IP/hostname that was discovered
`status.resolvedDestinationPort`	Backend port that was discovered
`status.lastSyncTime`	Timestamp of last successful sync
`status.conditions[Synced]`	Standard Kubernetes condition
`status.conditions[Ready]`	`true` when backend is discovered and rule is active

Force re-sync:

kubectl annotate spr myapp -n myapp force-sync="$(date +%s)" --overwrite

Helm values reference

Value	Description	Default
`synology.url`	DSM base URL	required
`synology.username`	DSM username	required
`synology.password`	DSM password	required
`synology.skipTLSVerify`	Skip TLS certificate check	`false`
`synology.existingSecret`	Name of an existing Secret with DSM credentials	`""`
`operator.defaultDomain`	Domain suffix for auto-derived hostnames	`""`
`operator.defaultACLProfile`	ACL profile applied when none is specified per rule	`""`
`operator.enableArgoWatcher`	Enable ArgoCD Application watcher	`true`
`operator.watchNamespace`	Namespace glob (e.g. `app-*`) for annotation-free auto-management	`""`
`operator.ruleNamespace`	Namespace for auto-created `SynologyProxyRule` objects. Empty = source app namespace	`""`
`operator.disableAutoDiscoveryIfSPRExists`	Suppress glob auto-discovery for any namespace that already contains a manually-created `SynologyProxyRule`	`false`
`installCRDs`	Install CRDs via Helm	`true`
`leaderElection`	Enable leader election for HA deployments	`false`

License

Apache 2.0 — see LICENSE.

Name		Name	Last commit message	Last commit date
Latest commit History 41 Commits
.github		.github
api/v1alpha1		api/v1alpha1
cmd		cmd
config		config
docs		docs
hack		hack
helm/synology-proxy-operator		helm/synology-proxy-operator
internal		internal
.gitignore		.gitignore
.golangci.yml		.golangci.yml
CHANGELOG.md		CHANGELOG.md
Dockerfile		Dockerfile
LICENSE		LICENSE
Makefile		Makefile
README.md		README.md
go.mod		go.mod
go.sum		go.sum

Folders and files

Latest commit

History

Repository files navigation

How it works

Zero-touch reverse proxy management

Optional — automatic DNS:

Prerequisites

Installation

Option A — Helm from GHCR (recommended for stable releases)

Using an existing Secret

Option B — Helm from Git (tracks main branch, includes latest unreleased changes)

Option C — GitOps with ArgoCD

Configuration

Usage

Mode 1 — Annotate a Service or Ingress

Mode 2 — Annotate an ArgoCD Application

Mode 3 — Manual SynologyProxyRule

Controlling auto-discovery per namespace

Exclude one resource from a glob-managed namespace

Disable auto-discovery for an entire namespace

Disable auto-discovery when a manual SPR exists in the namespace

Decision order

Hostname derivation

Certificate assignment

Access control (ACL profiles)

Backend discovery

Annotation reference

SynologyProxyRule CRD reference

Status and observability

Helm values reference

Further reading

License

About

Topics

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 4

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Option B — Helm from Git (tracks `main` branch, includes latest unreleased changes)

Packages
