Windy Card

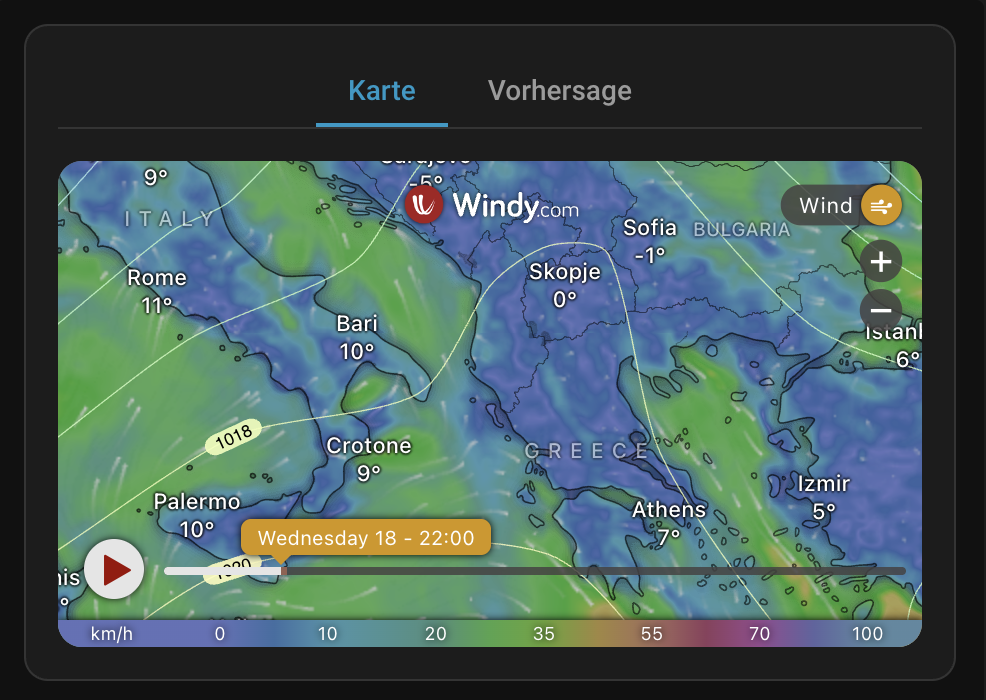

A Lovelace card that embeds the Windy.com interactive weather map and spot forecast directly into your Home Assistant dashboard.

Features

• Interactive Windy Map with 50+ weather layers (wind, rain, temperature, radar, satellite, air quality, and more)
• Map Reset Button to quickly re-center and reset zoom without reloading the dashboard
• Spot Forecast view for a detailed point forecast at any location
• Zone entity support — point the map at any HA zone automatically
• Marker & Spot detail — pin a specific lat/lon for the marker and spot forecast popup
• Conditional editor — elevation and forecast model selectors only appear for compatible layers; map layers and display options are hidden when in forecast_only mode.
• Accessibility — Full keyboard navigation support (arrows, Home, End) for the mode switcher tabs.
• Reliability — Extensive test suite covering card logic, URL generation, and the configuration editor.
• Pressure isolines toggle (disabled automatically for radar/satellite)
• Aspect ratio or fixed pixel height for flexible layout. Maintains map and forecast dimensions seamlessly without layout shifts.
• Fully translated — English, French, and German

Localization

• English
• French
• German

Contributing Translations

1. Fork the repository on GitHub.
2. Copy src/translation/en.json and rename it to your language code (e.g. es.json).
3. Translate all values.
4. Submit a pull request.

Installation

HACS (Recommended)

This card is available in the Home Assistant Community Store (HACS).

Manual Installation

1. Download windy-card.js from the latest release.
2. Place it in your config/www directory.
3. Add the resource under Settings → Dashboards → ... → Resources:
   • URL: /local/windy-card.js
   • Resource Type: JavaScript Module

Configuration

The card is fully configurable through the Lovelace UI editor. Options are organized into collapsible sections.

Main Options

Name	Type	Default	Description
type	string	Required	custom:windy-card
title	string	—	Card title
default_mode	string	map	map, forecast, map_only (no toggle), or forecast_only

Location

Name	Type	Default	Description
location	string	—	HA zone or device_tracker entity to use as map center (overrides lat/lon)
latitude	number	HA location	Map center latitude
longitude	number	HA location	Map center longitude

Map Layer

Name	Type	Default	Description
overlay_entity	string	—	HA entity whose state is used as the map overlay (overrides overlay)
overlay	string	wind	Weather layer (see full list below)
level	string	surface	Altitude level (only for compatible layers)
product	string	ecmwf	Forecast model (hidden for radar/satellite)
zoom	number	5	Zoom level (3–11)

Forecast Options

Name	Type	Default	Description
forecast_product	string	ecmwf	Data provider for the spot forecast widget (e.g., AROME, ICON-D2)

View / Size

Name	Type	Default	Description
aspect_ratio	string	16:9	Responsive ratio (16:9, 4:3, 3:2, 1:1, 2:1). Set to empty to use fixed height.
height	number	450	Fixed height in px (used when aspect_ratio is empty)
no_padding	boolean	false	Remove padding and border from ha-card (applies to all modes)

Units

Name	Type	Default	Description
metric_temp	string	default	Temperature unit: default, °C, °F
metric_rain	string	default	Rain unit: default, mm, in
metric_wind	string	default	Wind unit: default, kt, m/s, km/h, mph, bft

Display Options

Name	Type	Default	Description
show_marker	boolean	false	Show a pin at the detail location
show_spot	boolean	false	Show the spot forecast popup
show_pressure	boolean	false	Overlay pressure isolines (not available for radar/satellite)
hide_message	boolean	false	Hide the Windy promotional message

Available Layers (overlay)

Core: wind, rain, temp, clouds, waves, raincum, gusts, windcum, cat, icing, radar, satellite

Atmosphere: snow, snowdepth, ptype, thunder, dewpoint, rh, freezing, wetbulb, fog, cloudtop, cloudbase, visibility, cap, thermals, hclouds, mclouds, lclouds

Solar & UV: solarpower, uv

Ocean: swell, swell2, swell3, wwave, sst, currents, tidalcurrents

Air Quality: no2, pm25, aerosol, ozone, so2, surfaceozone, co, dust

Other: pressure, extreme, warnings, drought, fire

Known Limitations

This card uses the free Windy Embed Widget, which has strict functional limitations compared to the full Windy.com website or app:

• Premium Login: The embed widget does not support user authentication or token passing. Premium features, such as 1-hour forecast steps, are only available on the main Windy app.
• Radar Units Support: The radar overlay natively displays intensity in dBZ (unlike the full app's mm/h toggle). This is the intended behavior of the Windy Embed API. Unit settings configured on this card (metric_rain, etc.) serve as your preferred defaults for the spot forecast and other compatible overlays.
• Satellite Spectrum: Although Windy provides Blue, Visible, and Infrared satellite options, the embed iframe automatically strips or ignores external URL overrides (like satelliteMode=IRBT) and forces the default view. Toggling these maps must be done manually using the controls within the iframe.

Examples

Basic Map

type: custom:windy-card
title: Local Weather
overlay: wind
zoom: 7
aspect_ratio: '16:9'

Pinned Location with Spot Forecast

type: custom:windy-card
title: Mountain Forecast
latitude: 47.421
longitude: 10.985
show_spot: true
overlay: wind
level: 850h
zoom: 8

Zone-Based Map

type: custom:windy-card
title: Home Area
location: zone.home
overlay: rain
zoom: 6
aspect_ratio: '4:3'

Air Quality View

type: custom:windy-card
title: Air Quality
overlay: pm25
zoom: 5
metric_wind: km/h
hide_message: true

Development

Setup

1. Clone the repository:

   git clone https://github.com/timmaurice/lovelace-windy-card.git
   cd lovelace-windy-card

2. Install dependencies:

   npm install

3. Start the watch server:

   npm run watch

4. Point your HA Lovelace resource to dist/windy-card.js.

---

For issues or feature requests, visit the GitHub repository.
